Customized Semi-automatic Handheld Fast Auto Screw Feeding Automatic Screwdriver
Description:
hand-held screwing device is a new patented product. There is no need for the operator to pick up the screw one by one from the screw feeder. The screws will feed to the screwdriver bit directly through a tube.
Hence, the operator’s work efficiency has been greatly increase by 2-4 times. It helps to reduce cost and enhance the company’s competitions. The estimated time to recover the investment of this device is only one month. It has stable performance and low failure rate.
Product Highlight:
Lightweight and compact design
Feed screws directly to the screw bit
Increase productivity by 3 times
Suitable for most of the electric screwdrivers
Product Parameters:
| Model | LS-609NB automatic screwdriver system |
| Output Power | 100W |
| Efficiency | 0.8-1.5 second / piece |
| Fuse | 5A 250VAC |
| Suitable screws | M1.4-M6.0 (can be customized) |
| Screwing Operation | Hand-held Single Operator |
| Feeding System | Single Screw Feeding System |
| Push-pull Travel | 30 ~ 75mm (According to Buyer request) |
| Screw Feeding Mode | Blowing Type |
| Dimensions | 300 X 240 X 330mm |
| Weight | About 15kg |
Applications:
It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc
Product Features:
→ It is a push-pull type automatic screw fastening machine.It can be customized according to customer requirements.
→ It consists of push-pull cylinder & electric screwdriver & blowing type feeding system & special clamping chuck.
→ Features: Easy operation, continuous feeding, anti-skid function, constant torque, automatic detection of screw teeth sliding.
→ The self-developed control system makes the operation simple and the screwing accurate. With the user-friendly feel, it is an ideal equipment for screw fastening.
Why Choose Us?
1. The solenoid valve adopts SMC solenoid valve imported from Japan, which is sensitive in response and has a long service life.
2. AirTAC cylinders are sensitive to work and have a service life of 50 million times.

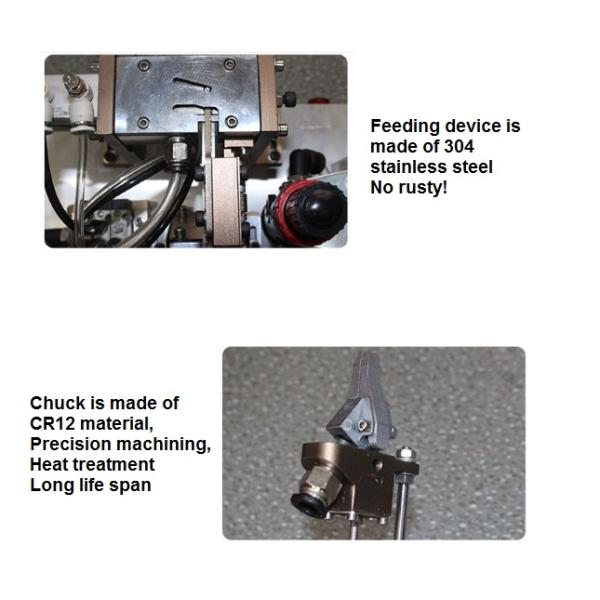

3.The feeding device is made of 304 stainless steel, which is precisely machined, not easy to rust, and has a longer service life.
4.The chuck is made of CR12 material, precision machining, heat treatment, and the hardness can reach 60 degrees.

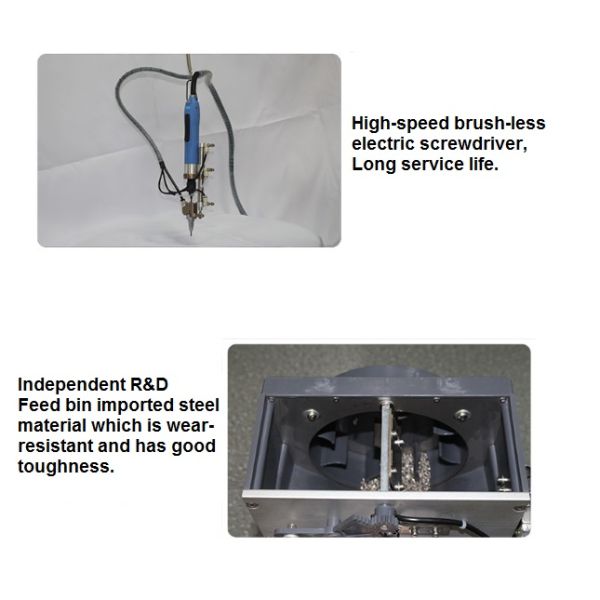

5. The electric screwdriver uses a high-speed brush-less electric screwdriver, no maintenance is required, and it is not easy to get hot after long-term use.
6. Independent R&D feed bin, the material is imported steel, which is wear-resistant and has good toughness.
